Description:

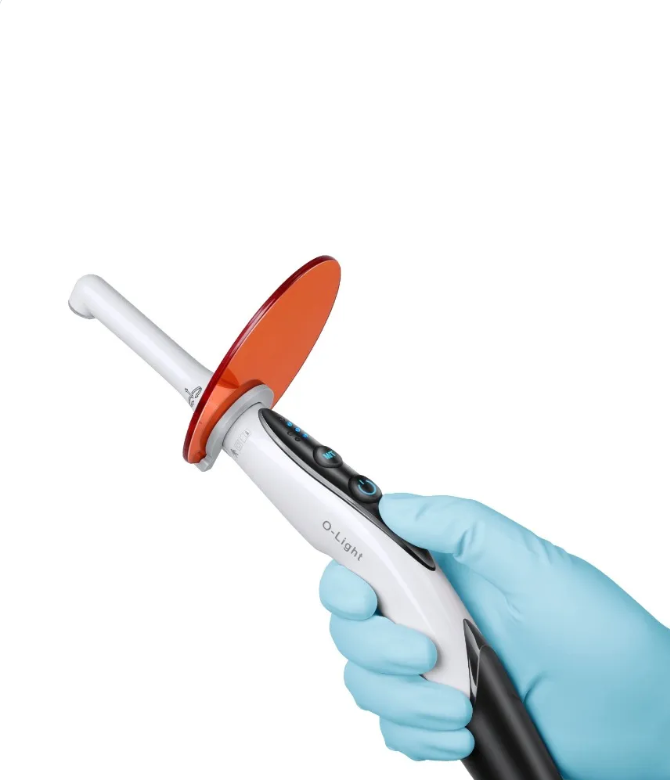

The Woodpecker O-Light Curing Light Unit is a highly regarded tool among dental professionals, known for its exceptional speed and precision in resin polymerization. With an impressive maximum light intensity of 2300 mw/cm², it can cure 2mm of resin in just 1 second, making it an efficient solution for procedures requiring quick curing. The device features a consistent light output, ensuring reliable performance even as the battery is used, preventing any drop in intensity. Safety is a key consideration, with a carefully designed light hood that protects against harmful blue-ray exposure. Powered by a 5W high-power blue light LED, the O-Light guarantees a steady and effective cure. It offers two modes: High Mode (2300-2500 mw/cm²) for demanding applications like orthodontics, porcelain veneers, and post-core restorations, and Standard Mode (1000-1200 mw/cm²) for general curing tasks. The unit’s powerful light penetration ensures efficient curing without distance limitations, while its 360° rotatable front connector provides enhanced access to posterior teeth and other hard-to-reach areas. In essence, the Woodpecker O-Light combines speed, safety, and flexibility, making it a reliable and versatile tool for dental professionals worldwide.
Key Features:
• High Light Intensity: Maximum light intensity of 2300 mw/cm², capable of curing 2mm of resin in just 1 second for quick polymerization.
• Consistent Performance: Maintains constant light intensity throughout use, ensuring reliable curing even as the battery power decreases.
• Safety Features: Equipped with a specially designed light hood to protect against harmful blue-ray exposure.
• 5W High-Power LED: Provides steady and effective curing with a 5W high-power blue light LED.
• Two Working Modes:
High Mode (2300-2500 mw/cm²) for more demanding procedures like orthodontics, porcelain veneers, and post-core restorations.
Standard Mode (1000-1200 mw/cm²) for general curing tasks.
• Strong Light Penetration: Ensures efficient curing without distance limitations, allowing for deep resin solidification.
• 360° Rotatable Front Connector: Allows easy access to posterior teeth and hard-to-reach areas for better precision during treatments.
• Fast Curing: Cures light-sensitive resin in a short time, utilizing ray radiation principles to efficiently solidify the material.
Directions for Use:
Ensure Proper Power: Make sure the unit is fully charged or has fresh batteries before use.
Attach the Light Hood: Securely attach the light hood to the front connector of the unit.
Select the Mode: Choose either High Mode or Standard Mode, depending on the specific dental procedure you're performing.
Position the Curing Light: Place the curing light at an appropriate distance from the area that requires resin polymerization. The unit’s strong light penetration means there is no distance limitation.
Activate the Curing Light: Press the power button to turn on the light. It will emit high-intensity focused light.
Cure the Resin: Keep the light directed at the resin material and maintain the recommended curing time, typically 1 second for a 2mm thickness of resin.
Ensure Even Exposure: Move the curing light evenly across the surface of the resin material, ensuring all areas receive adequate light exposure for effective polymerization.
Deactivate the Curing Light: After the recommended curing time, turn off the curing light by pressing the power button again.
Clean the Unit: Clean the light hood and the device's surface with a soft, lint-free cloth or a disinfectant wipe to maintain hygiene standards.
