(Refurbished) Siemens CT Scanner

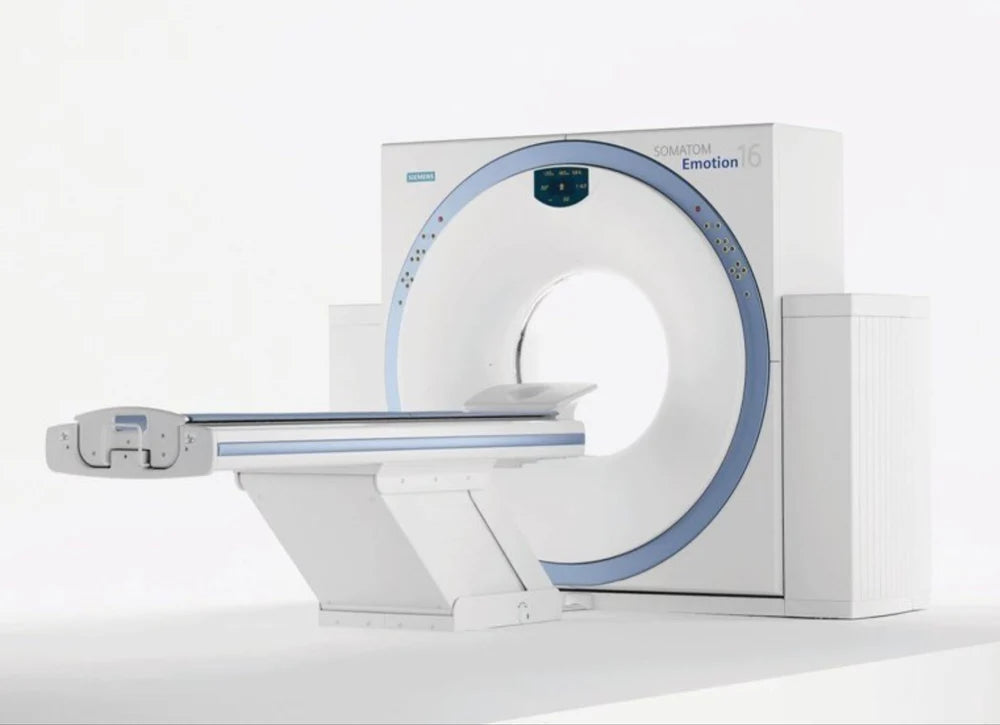

The Siemens SOMATOM Emotion 16 is a high-efficiency, 16-slice CT scanner built for precise diagnostics and enhanced clinical outcomes. With advanced imaging technology, a compact footprint, and optimized workflow tools, it is designed for reliable performance in hospitals and diagnostic centers. Key features include fast rotation times, the Ultra Fast Ceramic (UFC) detector for high-resolution imaging, real-time dose modulation, and Siemens’ SureView spiral image reconstruction for efficient and accurate scanning. The system integrates advanced post-processing and image acquisition software for streamlined operations and high throughput.

Key Features:

• Slices per Rotation: 16 slices
• Rotation Time: 0.6 seconds (minimum)
• Detector Technology: UFC (Ultra Fast Ceramic)
• X-ray Tube: DURA 422MV, 5.0 MHU heat storage capacity
• Tube Voltage: 80, 110, 130 kV
• Tube Current Range: 20–345 mA
• Generator Power: 50 kW
• Scan Field: Up to 50 cm (standard), 70 cm reconstructed FOV
• Gantry Tilt: ±30°
• Patient Table Load: Up to 200 kg
• Table Travel Range: 153 cm scannable range, vertical travel 45–83 cm
• Reconstruction Speed: Up to 16 images/sec
• Slice Thickness: 0.6 to 19.2 mm
• Temporal Resolution: As low as 125 ms
• Image Matrix: 512 x 512
• Image Storage: Up to 260,000 uncompressed images
• Data Storage: 365 GB raw data drive
• Workstation OS: syngo® platform with Acquisition and CT Workplaces
• 3D and MPR Capabilities: Volume rendering, surface shaded display, automated bone removal, CT-angiography
• Real-time Dose Optimization: CARE Dose4D, CARE Topo, CARE Filter, CARE Bolus
• Software Tools: SureView, syngo Viewing, Filming, Archiving & Network, Dynamic Evaluation
• Laser Positioning: Coronal, sagittal, and axial laser lights for isocentric scan alignment
• Patient Communication: Integrated intercom and automatic instruction system
