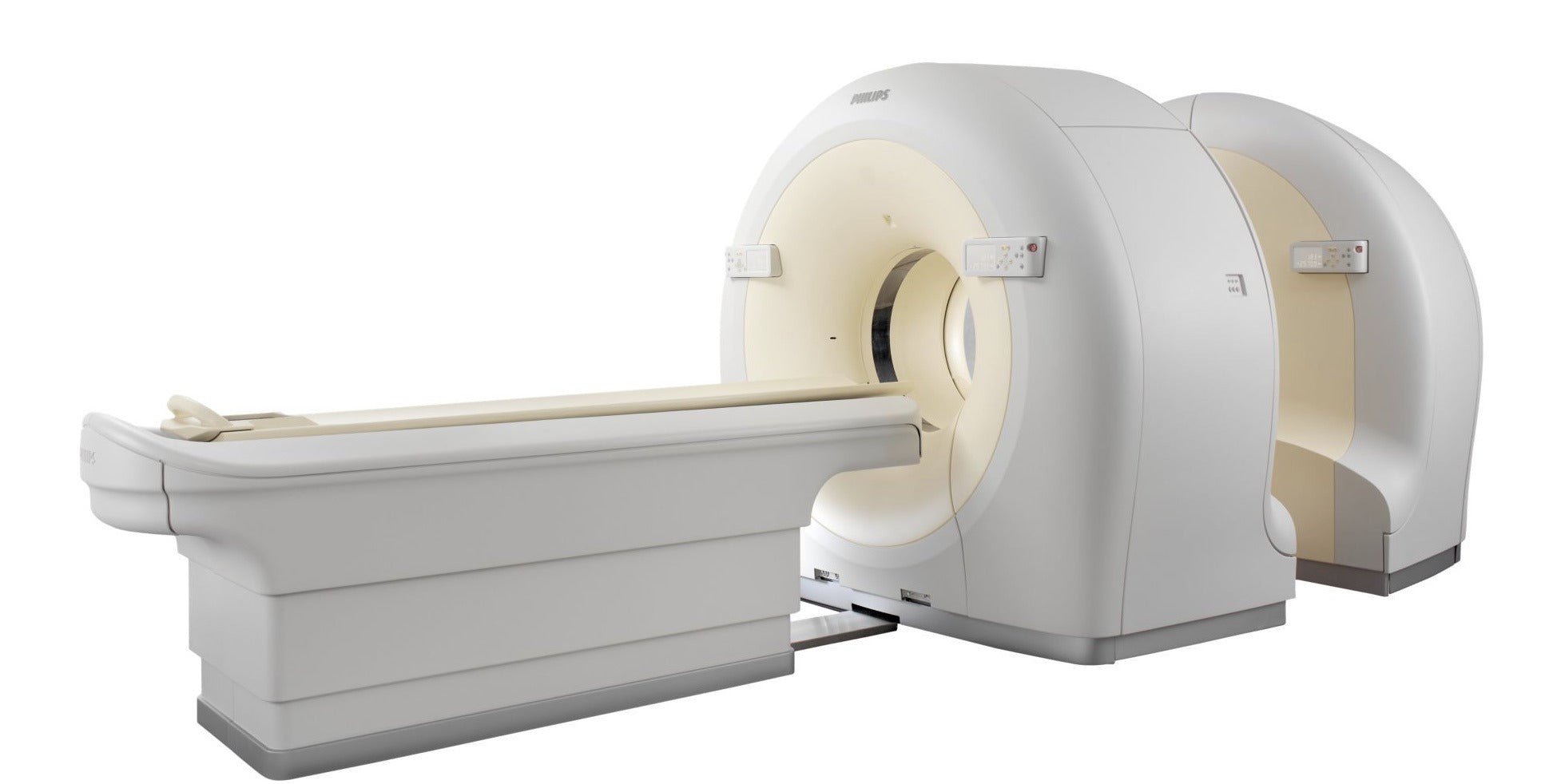

Philips Gemini TF 16 / 64 Slice PET CT Scanne
Philips Astonish TF Time-of-Flight technology helps improve image quality and reduce scan times by capturing the actual time difference between coincident events. Perform high-resolution, diagnostic whole-body PET scans quickly, even for large patients, across a range of applications.
Philips TruFlight PET architecture was the first to deliver Time-of-Flight (TOF) in a commercial PET/CT system. It has third generation of TOF—again improving speed and accuracy.
By capturing the time difference between coincident photon detection, TruFlight technology acquires and processes data in a totally different way than conventional
scanners. It helps you see more than ever.
GEMINI TF delivers the unique benefits of TruFlight technology: faster scans, lower dose, excellent image quality—especially with large patients—and the most advanced platform available for demanding Molecular Imaging applications.
The Philips GEMINI TF 64-channel configuration system puts you ahead of the applications curve. In addition to providing additional confidence during routine oncology FDG studies, the acquisition speed of PET and CT enables you to perform advanced applications such as pulmonary gating, cardiac studies and molecular imaging
Philips Gemini TF 16 / 64 Slice PET CT Scanner Features:
DoseWise for dose efficiency - designed to help you achieve exceptional dose efficiency to enhance patient care without compromising image quality
OpenView Gantry - the unique open design offers increased patient comfort for anxious and claustrophobic patients
Maximum patient weight: 195/430 kg/lbs
Patient port for PET & CT: 70 cm
PET/CT scan range: 190 cm
OpenView gantry design: Yes
PET
Crystal material: LYSO
Crystal dimensions: 4 x 4 x 22 mm
Time-of-Flight imaging: Yes
System sensitivity (center): 7000 cps/MBq (NEMA) and > 14,000 (TOF)
Peak NECR: 110 kcps (NEMA) and > 220 (TOF)
Transverse spatial resolution (1 cm): 4.7 mm (NEMA)
CT
Configurations: Brilliance 64-channel or 16-slice
MRC X-ray Tube: Anode storage capacity 8.0 MHU
