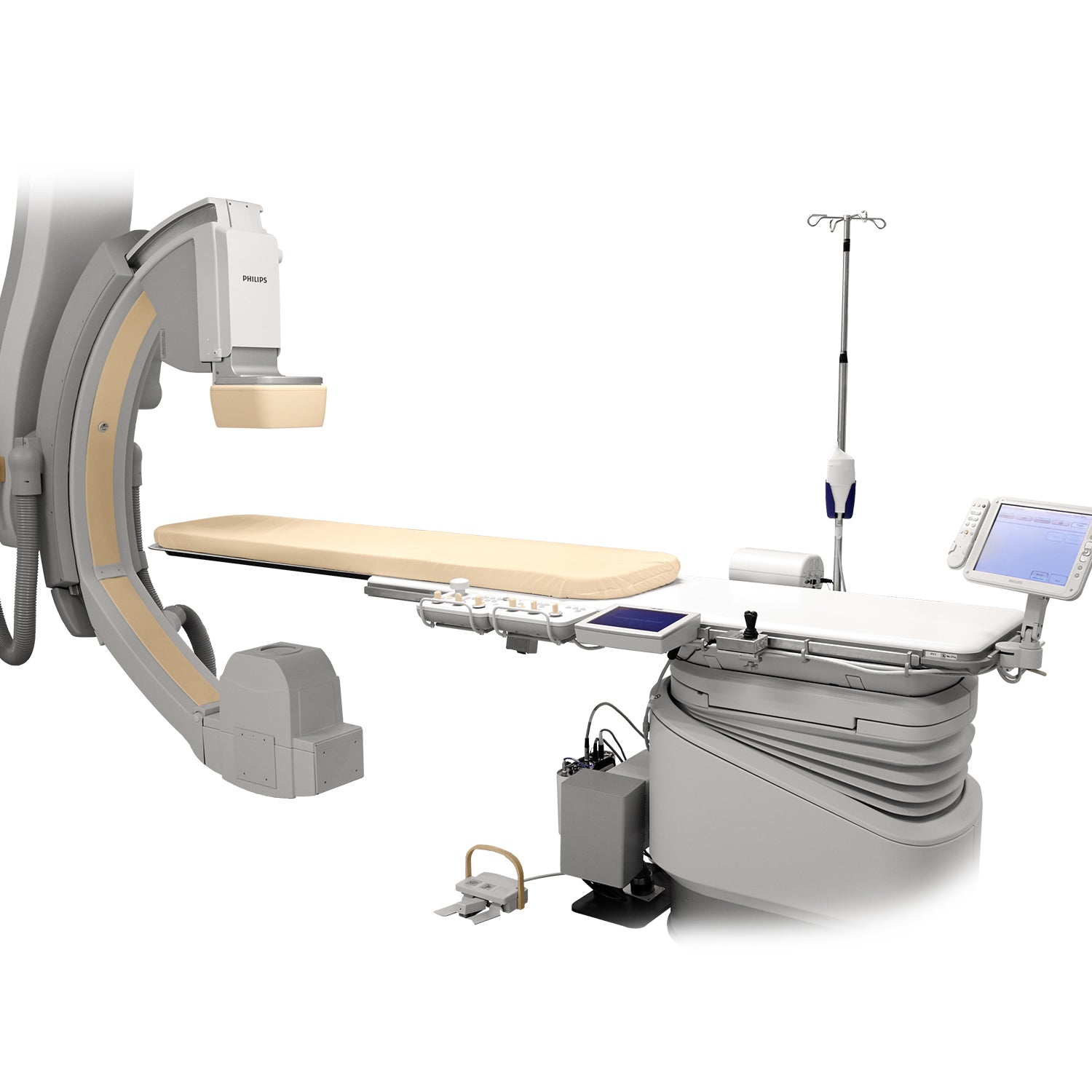

Philips Allura Xper FD10 Cath/Angio System
The Philips Allura Xper FD10 is a Ceiling suspended complete cardiovascular imaging system designed for a variety of interventional cardiology procedures. The Philips Allura Xper FD10 produces high-contrast images with low noise, making it an ideal system for challenging cardiac fluoroscopy, vascular fluoroscopy, and trace subtraction fluoroscopy procedures.
Highlights
- Ceiling-suspended C-arm
- High output MRC X-Ray tube
- Counter-balanced Flat Panel Detector
- Xper Table
- Flexible monitor ceiling suspension with height adjustment
Features
- Complete cath lab system provides exceptional image quality for coronary angiography.
- Flat panel detector increases image contrast while reducing noise.
- Ideal for challenging cardiac fluoroscopy, vascular fluoroscopy, and trace subtract fluoroscopy procedures.
- Proprietary Xper (x-ray personalized) feature lets each clinician customize the system for their unique workflow, allowing for confident and fast diagnoses.
- Philips Allura 3D-RA analysis package generates high-resolution 3D images from a single rotation angiography run in only a few seconds.
- 3D-RA also offers enhanced visualization of the anatomical vessel structure.
- Fluid workflow and DICOM integration brings together advanced image acquisition and visualization tools, multi-modality access, hemodynamic monitoring, and integrated reporting.
- StentBoost technology enhances stent visualization.
- G-shaped, ceiling-suspended, motorized gantry is compact and provides excellent patient stability from all sides.
- While the G-arm is compact, the unit’s design can accommodate virtually all cardiac projections, even with obese patients.
- Xper cardiovascular table features a free-floating table top and a 550-pound weight capacity.
- Table tilting function with automatic safeguarding system with manual override.
- Table pivot option designed for angiographic and interventional procedures of the upper peripherals.
- Convenient ceiling suspension enables you to freely rotate and adjust the monitors (available with two, four, or six monitors).
SPECIFICATIONS
Gantry
- Suitable for minimum ceiling heights of 240 cm (94.5 in)
- Depth of G-arm: 105 cm (41.3 in)
- Ultra-flexible projection angles: angulation from 45° cranial to 45° caudal, rotation from 120° LAO to 120° RAO
- Motorized rotation speed: maximum speed up to 25°/second
- Motorized angulation speed: maximum speed up to 18°/second with variable speed, configurable via Xper settings
- Storage and recall of two scratch positions
- Isocenter to floor distance: 106.5 cm (41.9 in)
- Focal spot to isocenter distance: 76.5 cm (30.1 in)
- Focal spot to flat detector distance: 86.5 to 123 cm (34.1 to 48.4 in). The detector can be positioned manually or via motorized movement
- The gantry can be rotated for parking to provide system-free patient accessibility: can be moved motorized at a speed of 12°/second, automatic snap positions at -90°, 0°, and 90°
- The system is delivered standard with two black and white 18-inch LCD monitors in the examination room
- One 19-inch LCD color monitor and one 18-inch black and white LCD monitor are standard in the control room
MRC-GS 0508 X-ray Tube
- 5/0.8 nominal focal spot values with maximum loadability of 45 kW and 85 kW
- Grid switching with pulsed fluoroscopy
- Anode heat dissipation in continuous mode: 3200 W
- Fluoro power for 10 minutes: 4500 W
- Fluoro power for 20 minutes: 3500 W
- Maximum heat dissipation of assembly: 3500 W
- SpectraBeam dose management
- Oil-cooled X-ray tube with thermal safety switch
Flat Panel Detector
- Size of detector housing, including BodyGuard: 37 cm (14 in) diagonal
- Field of view: 25 cm (10 in), diagonal square
- Detector zoom fields: 19 and 15 cm (8 and 6 in) diagonal square format
- Pixel size: 184 x 184 microns to allow visualization of the smallest details
- Detective Quantum Efficiency DQE (0): 75%
- Output digital video frame: 1024² at 14-bit depth resolution
- Acquisition speeds can not be customized per system: 3.75, 7.5, 15 and 30 frames/second
- Digital video frame out of archiving purposes is customizable via Xper settings in different formats: 1024², 512², 8 or 10 bit
Xper Table
- Radio translucent carbon fiber tabletop
- Tabletop length: 319 cm (125.5 in)
- Tabletop width: 50 cm (19.6 in)
- Motorized height movement: 79 - 107 cm (31 - 42 in)
- Tabletop metal free overhang: 125 cm (49 in)
- Free float at 0 degrees tilt
- Longitudinal float: 120 cm (47 in)
- Transversal float: 36 cm (14 in)
- Maximum allowable patient weight: 250 kg (550 lb) with additional force of 500 N (100 kg / 220 lb) allowed in case of CPR. CPR can be performed while the tabletop is set in any longitudinal position
- Comfortable patient mattress
- The Xper Module, Xper Imaging, and Xper Geometry Modules can be positioned on three sides of the patient support
- Cables incorporated in the table to allow maximum operational flexibility
Table position coordinates
- Maximum tilt range: -17° (head-down) to +17° (head-up)
- Tilt speed: 2 degrees/second
- Isocentric cradle
- Maximum cradle range: -15° to +15° for the full tilt range
- Cradle speed: 3 degrees/second
- Pivot range moves from -90° to +180° (or -180° to +90°) with locked positions at 0°, -13°, and +31° (to facilitate arm angiography) and -90°, +90°, and 180°
Velara X-ray Generator
- Microprocessor-controlled, 100 kW high-frequency converter generator
- Quartz-controlled IGBT power switch, with a minimum switching time of 1 ms
- Voltage range: 40 to 125 kV
- Maximum current: 1250 mA at 80 kV
- Maximum continuous power: 2.5 kW for 0.5 hours, 2 kW for 0.8 hours
- Nominal power (highest electrical power): 100 kW (1000 mA at 100 kV)
Monitor Ceiling Suspension
- Monitors rotate freely on the high ceiling suspension over a range of 350°
- Suspension moves transversely over a distance of 300 cm (118.1 in) and longitudinally over a distance of 330 cm (129.9 in)
- Allows motorized height adjustment over a maximum range of 32 cm
Color LCD Monitor
- 19-inch color LCD display
- Native format: 1280 x 1024 SXGA
- Wide viewing angle: approximately 170°
- Controlled brightness: typically 270 Cd/ m², with ambient light dependent brightness control
- On-screen display of control functions operated via push buttons
- Audio output 0.5 watt
- Contrast typically 800 on 1
Monochrome LCD Monitor
- 18-inch monochrome LCD display with a native format of 1280 x 1024 SXGA
- 10 bit gray-scale resolution with gray-scale correction
- Wide viewing angle: approximately 160°
- High brightness: maximum 600 Cd/m², with ambient light dependent brightness control
- On-screen display of control functions operated via push buttons
Examination room LCD monitors include protection screen and motorized height adjustment
