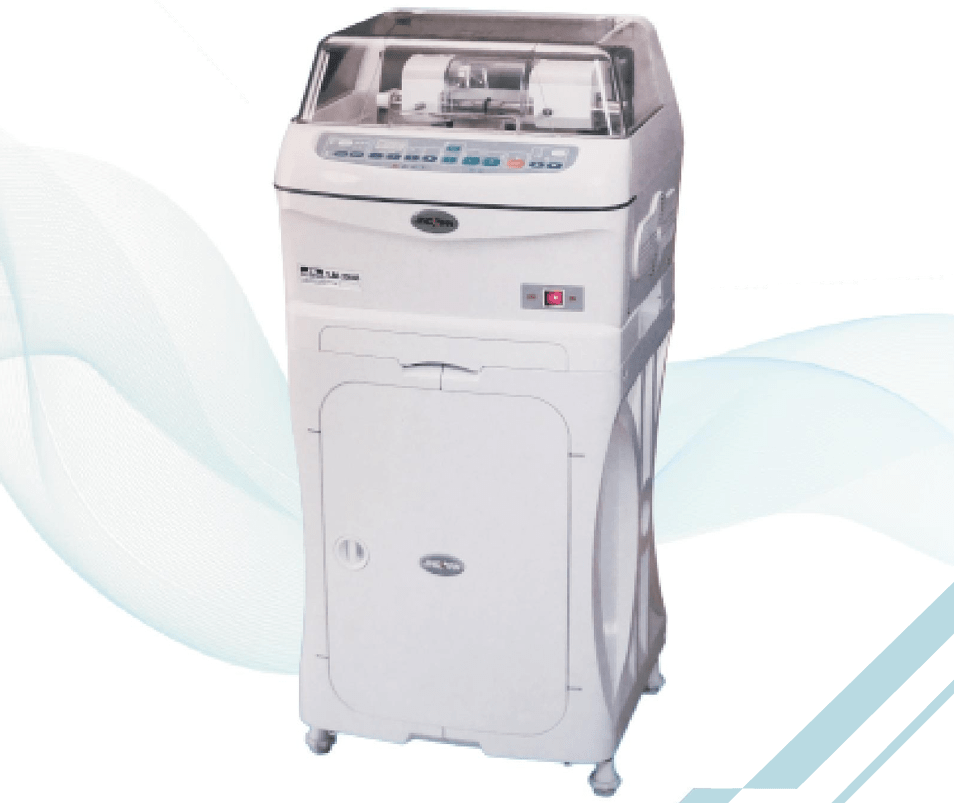

The JINGLIAN SJM 2008 Auto Lens Edger is a high-performance optical finishing system designed to deliver precision edging, polishing, and beveling of ophthalmic lenses. Engineered with advanced patented technologies, it ensures stability, accuracy, and reliability across a wide range of lens materials including glass and polycarbonate (Plexiglas).
Its pressure clamp system adopts a patented rotary eyeglass holder with automatic 3-second pressure adjustment, providing quick tightening without slippage or cracks. The system automatically maintains lens centering accuracy, ensuring consistent alignment for lenses of any thickness.
The intelligent grinding system is equipped with four imported grinding wheels configured for edging, re-beveling, and polishing. With dedicated settings for glass and polycarbonate, the system extends wheel life while delivering smooth, natural bevels. Multi-step grinding prevents rim cracking and achieves precise edge finishes to meet diverse optical requirements.
The intelligent upturn system further enhances workflow by enabling automatic re-edging, re-grinding, and high-accuracy finishing, thereby reducing processing time. Digital-controlled machining of critical components ensures mechanical stability, lightness, and enhanced performance.
With a computer-controlled interface and adjustable template system, the SJM 2008 is suitable for both small clinics and high-volume optical workshops requiring reliable, consistent, and efficient lens edging operations.
Large-scale adjustable template table for regulated edging size
Grinding range: 26 mm – 110 mm
Rubber orientation system for accurate lens positioning
4 Grinding Wheels (imported materials)
Glass edging wheel: 101 × 15 mm
Plexiglas edging wheel: 101 × 16 mm
V-molding & re-beveling wheel: 100 × 21 mm
Polishing wheel: 100 × 11 mm
Supports separate edging for glass and polycarbonate (longer lifespan)
Trial edging function for accuracy and prevention of rim cracking
Multiple choices for V-bevel and flat-edge polishing
Patented rotary eyeglass collection system
3-second automatic pressure adjustment and quick tightening
Ensures no slip or cracking of lenses
Automatic tightening secures lens center alignment
Compatible with lenses of any thickness
Automatic rim re-edging function
Re-grinding capabilities for enhanced accuracy
Shortens total edging process
Patented on-off design for process safety
Function keys for pattern selection and template adjustment
Indicator lights, power supply control, and alarm system
8-bit microcomputer control with single-keyboard operation
Automatic re-grinding function
Freely selectable bevel or flat rim finish
Operating temperature: 5°C – 40°C
Humidity range: 20 – 80% RH
Rated voltage: AC 220V – 240V
Power consumption: ≈ 350 W
