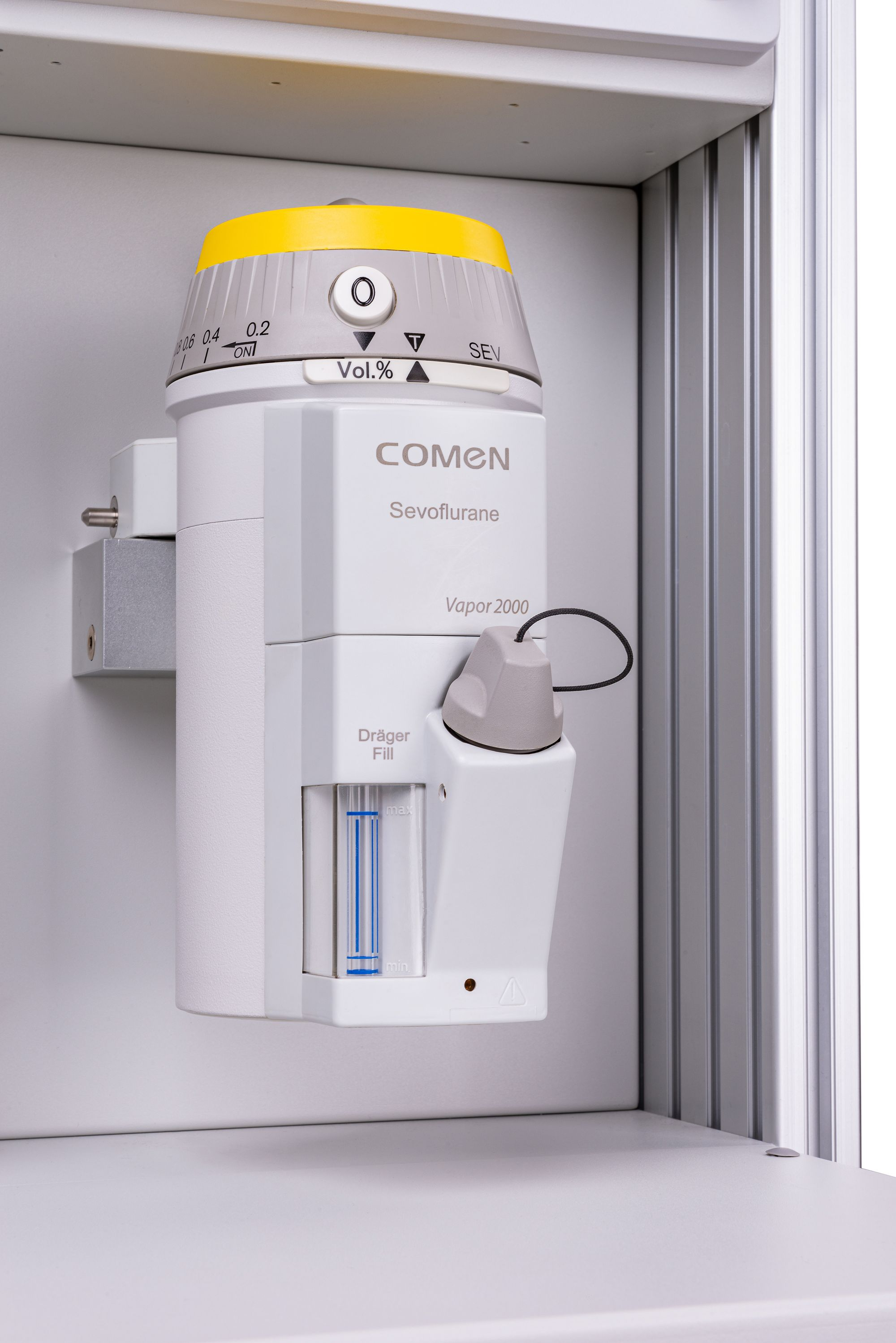

The Comen Sevoflurane Vaporizer is a precision-engineered device designed to deliver controlled and consistent concentrations of Sevoflurane anesthesia. It ensures accurate vaporization, even under varied flow and environmental conditions, with support for multiple filling systems. Its compact design and durable build make it suitable for various surgical and clinical environments.
Key Features:
Accurate Sevoflurane delivery (0%–8%)
Multiple filling options: Pour Fil, Quik Fil, Easy Fil, and Key Fil
High filling capacity for dry and moist wick
Spiral pipeline compensation for flow and pressure
Compatible with Selectatec Dräger mounting system
IP21 protection level
Specifications Table:
Category Specification
Dimensions 210mm × 120mm × 237mm
Weight 5kg ± 1kg
Protection Level IP21
Mounting Type Selectatec-compatible Dräger plug-in cagemount (ISO 23mm tapers)
Filling Volume (Dry Wick) 360ml (±60ml)
Filling Volume (Moist Wick) 300ml (±60ml)
Min/Max Scale Fill Volume 260ml (±60ml)
Filler Type Pour Fil, Quik Fil, Easy Fil, Key Fil
Range 0%–8%
Accuracy ≤5% (0.2–15 l/min): ±0.2% or ±20%rel
≥5% (0.2–10 l/min): ±0.2% or ±20%rel
Compensation Methods Pressure: Spiral pipeline
Flow: Spiral pipeline
Temperature: Metal valve
Filling Speed ≥2ml/s
Temperature Range 10°C to 40°C
Humidity Range 15%–95%
Atmospheric Pressure 70.0–106.0kPa
Max Inclination (Standalone) ≤10°
Max Inclination (In Use) ≤30°
Max Inclination (Transport) Not limited
